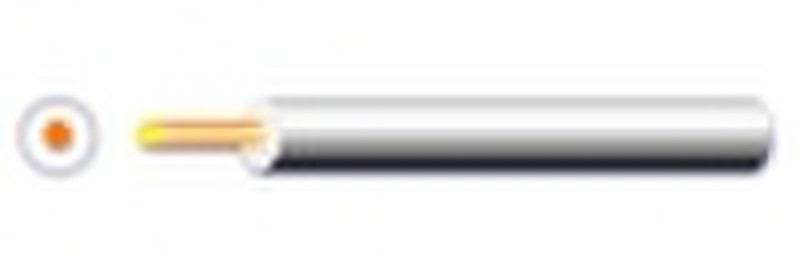

UL Style 3385 XL-PE Insulated Wire
James Fu
Contact person
Basic Information
| Brand Name | XINYA |
|---|---|
| Place of Origin | Guangdong China (Mainland) |
| Model Number | 3385 XL-PE Wire |
| Conductor Material | Copper |
| Insulation Material | PE |
Descriptions -UL Style 3385 -Maximum Temperature Rating: 105°C -Maximum Voltage Rating: 600V -Referenced Standard: UL758, UL1581, CSA C22.2 No.210.2 -File No: E170689, LL109915 -Solid or stranded, silver-plated or tinned copper conductor, 30-12AWG -Color-coded FR-PE insulation -Passes UL VW-1, CSA FT1 flame test -Uniform insulation thickness of wire to ensure easy stripping and cutting Applications Used for electrical and electronic equipments. Characteristics Conductor Insulation Maximum Conductor Resistance (W/km, @20°C) Minimun Resistance (MW/km,20°C) Dielectric Strength (ACV,1min) Size (AWG) Construction (No/mm) Out Diameter Thick (mm) Out Diameter (mm) 26 7/0.160 0.48 0.80 2.10 45.2 100 3000 24 11/0.160 0.61 0.80 2.25 28.3 100 3000 22 17/0.160 0.76 0.80 2.40 16.7 100 3000 20 21/0.178 0.95 0.80 2.55 10.5 100 3000 18 34/0.178 1.21 0.80 2.85 6.64 100 3000 16 26/0.254 1.49 0.80 3.10 4.18 100 3000
-
